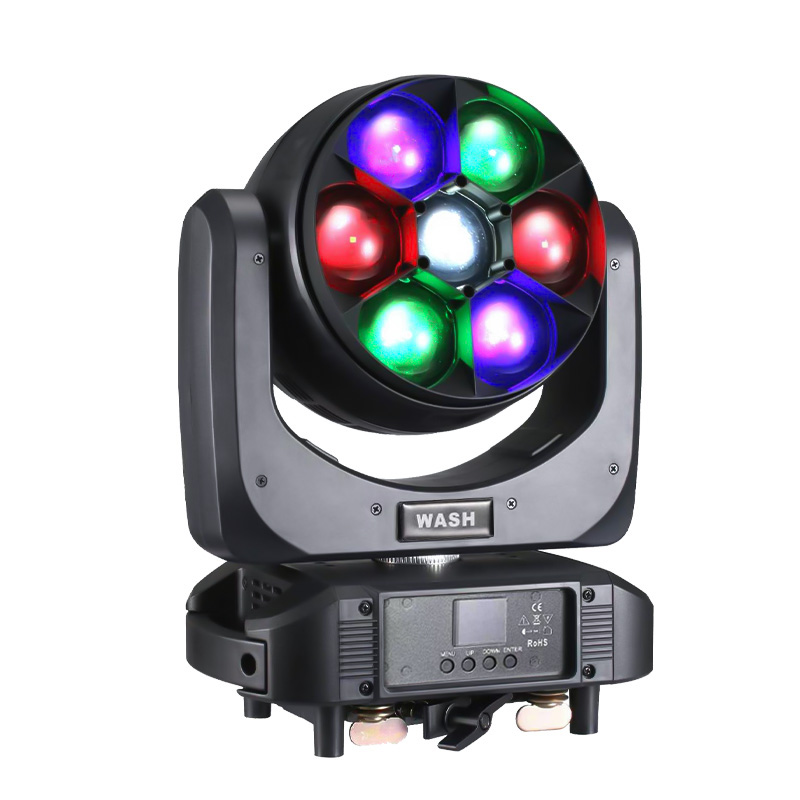

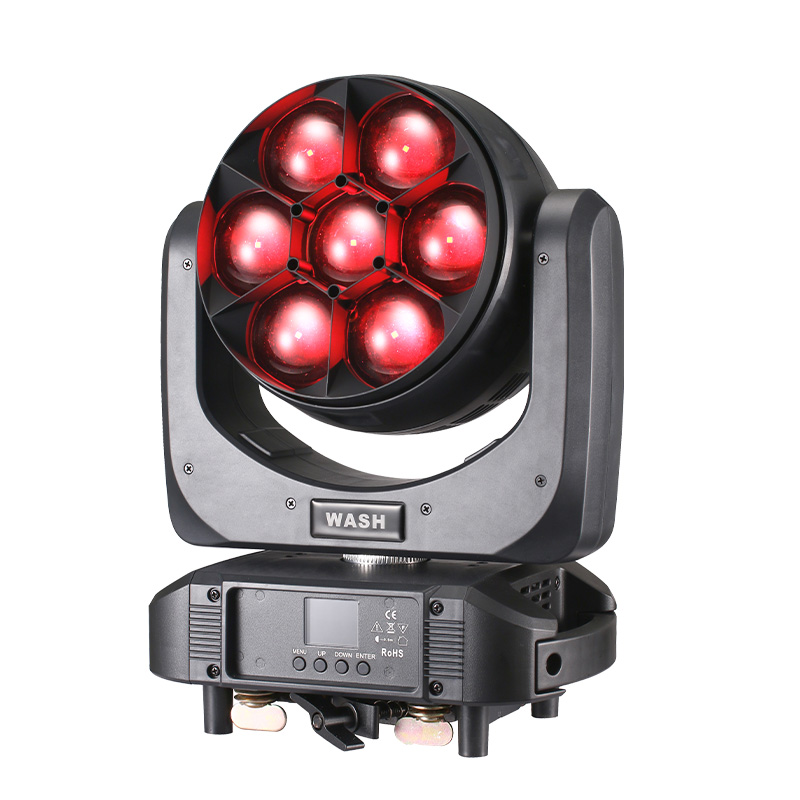

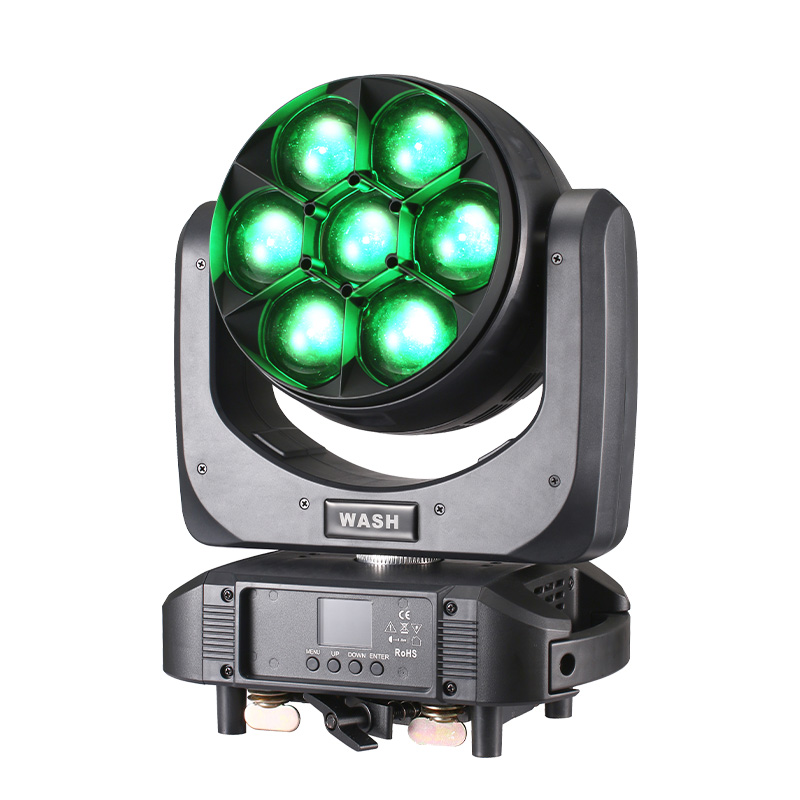

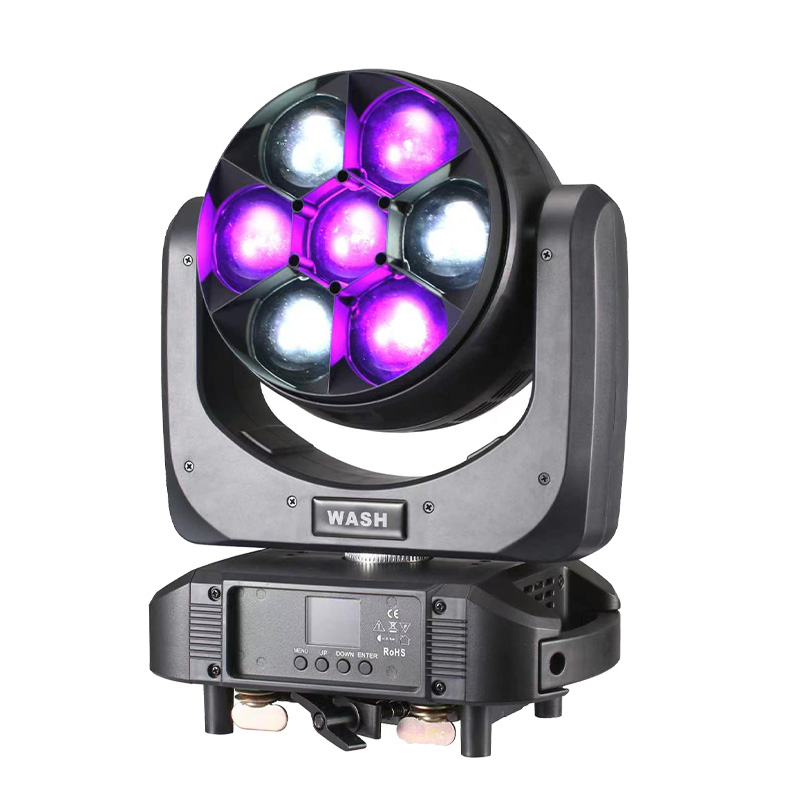

7 × 60W LED Bee Eye Zoom Moving Head Light

Light Source System

• Light source: 760W RGBW 4-in-1 LED
• LED lifetime: ≥20,000 hours

Optical System

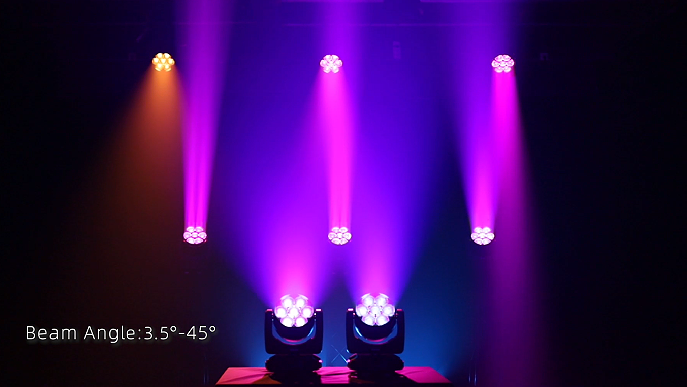

• Beam angle: 3.5°–45°

Color System

• Color: RGBW 4-in-1 Color Mixing System
• Color macros: Multiple Preset Color Macros and Effect Programs

Pan &Tilt

• Pan: 540°, Step Resolution 2.11°/step, Fine Resolution 0.008°
• Tilt: 270°, Step Resolution 0.86°/step, Fine Resolution 0.0034°

Effect

• Individual pixel control: Each LED can be independently controlled for color changes
• Effect macros: Multiple Preset Color Macros and Effect Programs
• Dimming: Full-Range Electronic Dimming, 16-bit Dimming Resolution
• Strobe: 1–25Hz Fast Strobe

Electrical & Interface

• Rated power: 420W
• Input voltage: AC 100–240V, 50/60Hz
• Signal connectors: 3-pin or 5-pin XLR IN/OUT
• Power connectors: PowerCON IN/OUT
• Maximum daisy chain: 8 units (240V, 50Hz, 2.5mm² power cable) / 4 units (100V, 60Hz, 2.5mm² power cable)

Control & Programming

• Control modes: DMX512 / Auto / Sound Active / Master-Slave / Manual / RDM
• Channel modes: 7 Built-in Channel Modes
• DMX channels: 21CH / 23CH / 35CH / 42CH / 49CH / 51CH / 56CH
• Display: 1.8-inch TFT Display

Fixture Structure

• Protection rating: IP20
• Housing material: High-Temperature-Resistant ABS

Size & Weight

• Fixture dimensions: 31.2 × 21 × 42.35 cm
• Net weight: 10.6 kg
