Name: 1200W High-CRI LED BSW Profile Moving Head for Theatre & Broadcast
Availability: InStock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

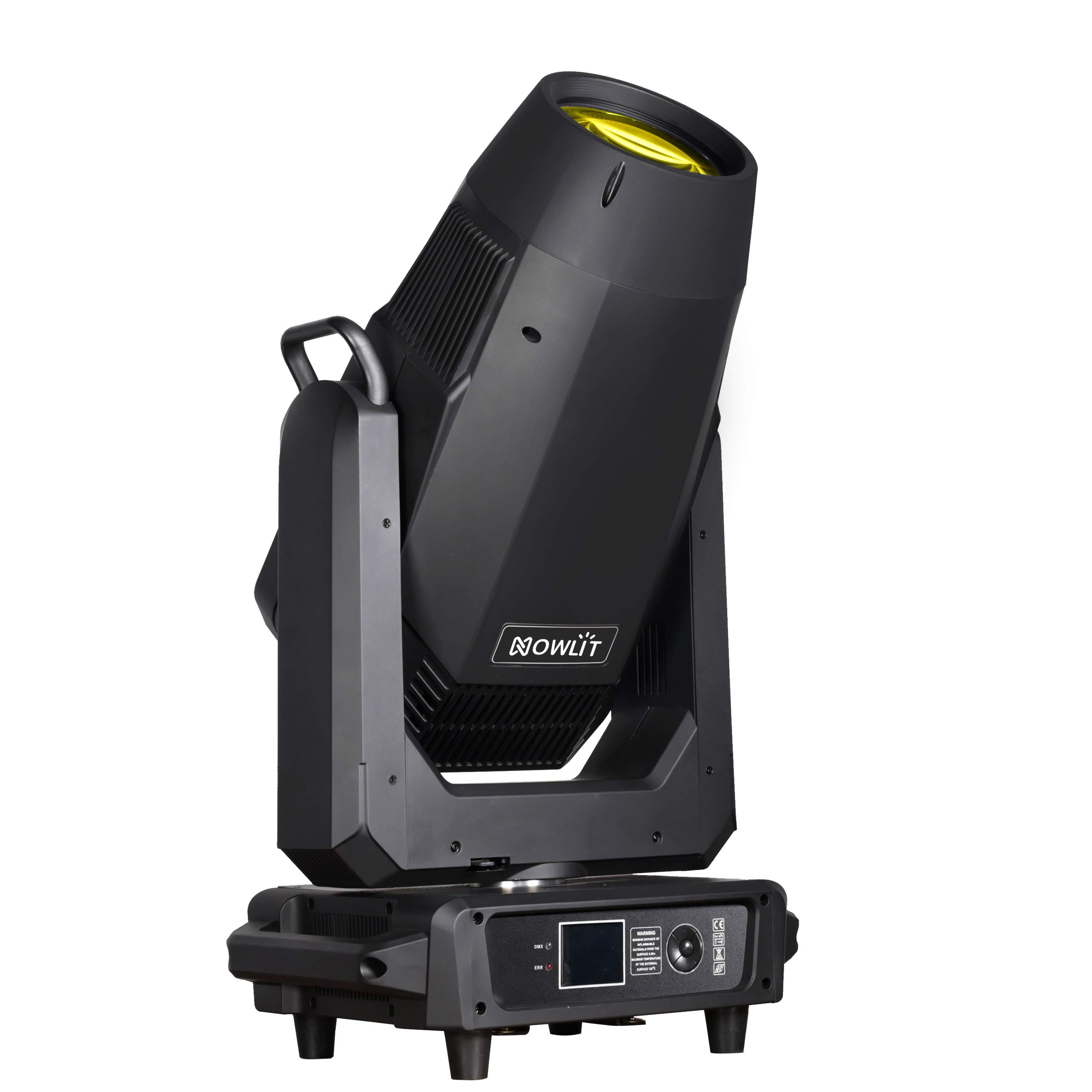

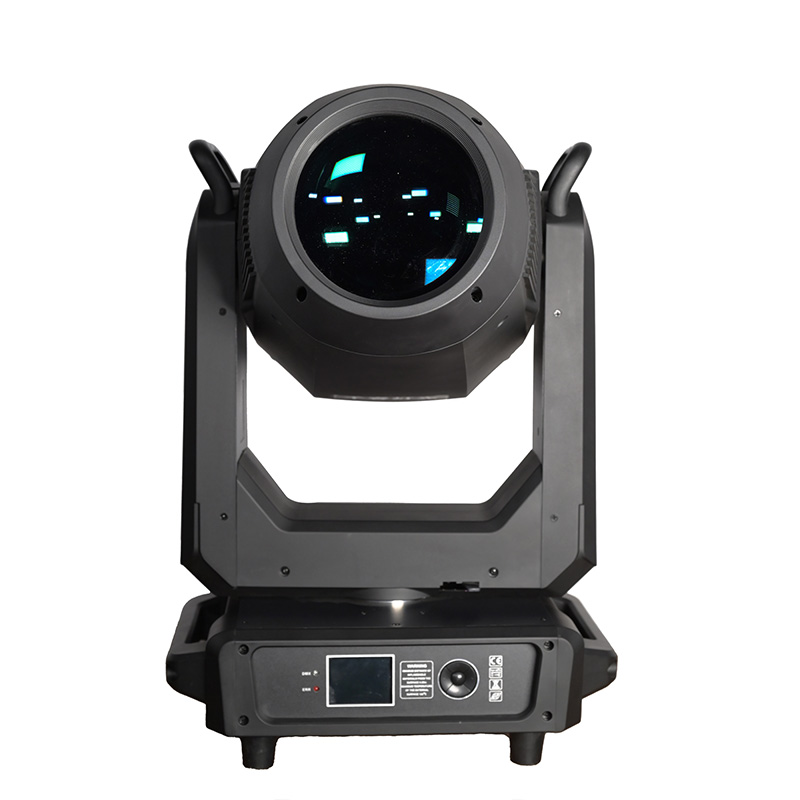

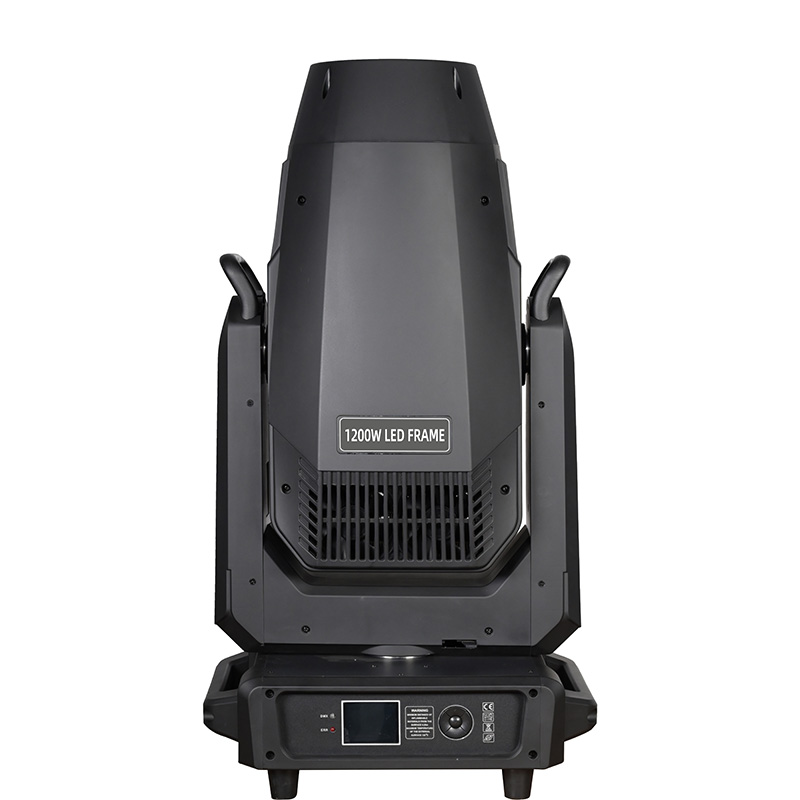

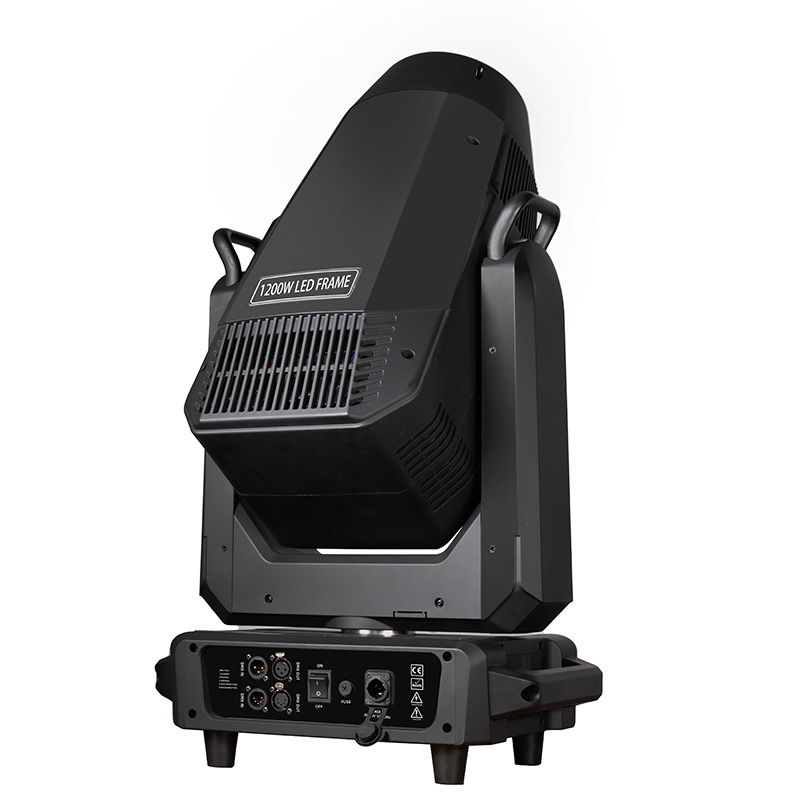

1200W High-CRI LED BSW Profile Moving Head for Theatre & Broadcast

High CRI 1200W LED 4in1 Profile Light is a high-performance stage light,it features an interchangeable CMY infinite color mixing system along with linear CTO color temperature .

Brand model :
QR-LF1400
Input voltage :
AC100V-240V, 50/60Hz
Light source :
1200W LED module
CRI :
Standard mode Ra >70, high display mode >90 (switchable)
Color wheel :
4+1/Rainbow effect/CMY/CTO
Net weight :
38kg

Inquiry Now

Function Description

High CRI 1200W LED 4in1 Moving Head Profile Light is a high-performance cutting moving head light designed for professional stages,studios,and large-scale events.Equipped with a powerful 1200W LED light engine,it supports dual-color mode switching and features an interchangeable CMY infinite color mixing system along with an interchangeable linear CTO color temperature correction structure,delivering exceptional color flexibility and rich,precise color.

The fixture is equipped with an independent dynamic effects wheel and offers 16-bit fine dimming with multiple dimming modes.Combined with a high refresh rate design,it effectively eliminates flickering issues in high-definition video recording.The built-in intelligent fan temperature control system supports multiple operational modes, ensuring efficient and stable heat dissipation for reliable long-term performance.

Within its compact body,it integrates all professional functions,with a total weight of only 38kg,perfectly balancing powerful functionality and portable deployment requirements.Combining long lifespan,efficient heat dissipation,robust features,and convenient control,it is the ideal choice for professional users pursuing exceptional lighting and visual effects.

Technical parameters

Light Source System

Light source specification: 1200W LED module
Light source color temperature: 7300K
Light source life: 20000 hours
CRI: standard mode Ra >70, high display mode >90 (switchable)

Optical System

Zoom range: electron linear zoom 5-50 degrees
Lens diameter：138mm
Lux：28500 Lux@10m

Color System

Independent CMY color mixing system
Linear CTO color temperature correction (7200-2600K)
1 Independent Color Wheel with 4 Colors, featuring step and linear color-changing modes, and an adjustable-speed rainbow water effect

Gobo system

Rotating gobo wheel: 6 pluggable glass gobos, each gobo can rotate independently in both directions
Gobo sheet size: outer diameter 30mm±0.2mm, inner diameter 25mm, thickness 1.1mm
Fixed gobo wheel: 7 fixed gobos+white, which can change speed and shake

Cutting system

4 independent cutting blades, each can be controlled individually to produce geometric shapes of different sizes and forms, and capable of 90°rotation

Effect

Dynamic effect wheel: super cool simulation of dynamic and moving flames, gurgling water and other dynamic effects
Prism: 3 facet prisms, can rotate independently in both directions
Dimming: 0-100% linear adjustment
Strobe: multiple speed electronic strobe effects
Frost: 1 independent frost , 0-100% linear frost, natural and soft light spot
Electric aperture: 5-100% rapid linear adjustment

Pan&Tilt

Pan/Tilt movement:540°/270°
Automatically return to its original position and perform 16-bit precision fine-tuning
A magnetic encoder positioning system is adopted

Electrical & Interface

Input voltage: AC100V-240V, 50/60Hz
Rated power: 1300W
Signal interface: 3-core+5-core XLR signal input/output

Control & Programming

Channel mode: 39CH
Control protocol: standard DMX512/RDM protocol
Display mode: 2.8 LCD touch screen, Chinese-English bilingual operating system, can reverse 180° display
Energy saving sleep: automatically enters the sleep state when the signal is disconnected, which is safe and energy saving
Software upgrade: software can be upgraded via DMX signal cable
Heat dissipation system: high-efficiency heat dissipation system, intelligent speed-regulating fan, built-in temperature sensor, and automatic adjustment of the heat dissipation system

Fixture Structure

Product appearance: nylon flame-retardant, heat-resistant, with folding clamps
Working environment: -20 ° C to 40 ° C
Protection level: IP20

Size & Weight

Product size: (L*W*H)
Net weight: 38kg

FAQ

1. Suitable for which scenarios?

This light is ideal for professional stages, studios, large-scale events, and film production, delivering high brightness and rich effects to meet a variety of lighting needs.

2. How is the color performance?

It features an independent CMY infinite color mixing system and a linear CTO plug-in design, providing smooth and natural color transitions with high CRI mode Ra >90, ensuring accurate reproduction of skin tones and stage colors.

3. Does it get hot or noisy during long use?

Equipped with a silent fan, the fixture runs stably for long periods without generating distracting noise.

4. Is it easy to install and move?

The fixture is compact and lightweight at only 38kg, allowing a single person to handle and deploy it quickly, overcoming the heaviness and inconvenience of traditional profile lights.
